MANUAL ELEVATOR SHAFT DOORS

Order manual elevator shaft doors quickly and easily using our order form. Just fill in the required parameters and we will prepare a tailor-made solution for you. Contact us today and secure high-quality and reliable elevator doors from AspF, s.r.o.!

Elevator shaft doors

Elevator shaft doors are a reliable and aesthetic solution for modern elevator systems. Thanks to their robust construction, high-quality materials and precise workmanship, they meet the highest safety standards.

Technical parameters:

Door type: Manually operated shaft lift door

Frame dimensions: Height: 2150 mm, Width: 970 – 1040 mm, Thickness: 55 mm

Opening dimensions: Height: 2000 mm, Width: 800 mm Glass panel: 6 mm safety glass,

Dimensions: 1440 × 135 mm

Door handle: Recessed integrated handle (standard) External additional handle (optional)

Color combinations: The frame and door leaf can be combined in different colors according to the sample book.

Center panel of the glass panel: Available in stainless steel or colored.

Components:

Door closer: ED-M01 (standard)

Door damper: CL-03 (standard)

Safety hinge switch: (optional)

Caller plate: (optional)

Certification:

Standard: STN EN 81 – 20:2021

Certificate number: 19983/4/2024-CERT-01

Metallic textured colors

Beige_Limestone

Quartz1

Quartz2

Gray_701

Gray_703

Copper_Glimmer

Smoked_Steel

Cast_Iron

RAL Colors

RAL_1017_Saffron_YELLOW

ral_2000_yellow_orange

RAL_2002_Vermilion

Stainless design

k240_brus_aspf_

KARO_aspf_

Form for preparing a Price Offer for the production of shaft doors from AspF, s.r.o.

Please enable JavaScript in your browser to complete this form.

The customer

Street:

City/Town:

Postal code:

(Fixed in Door

State:

ID number:

TIN:

VAT number:

Order:

Date of preparation:

Developed by (name)

First

Last

Required delivery date:

Email

Phone

Door type: (Fixed parameter)

Clear Door Width: (Fixed parameter)

Light Door Height: (Fixed parameter)

Door threshold width: (Fixed parameter)

Fire resistance: (Fixed parameter)

Door orientation:

Switch according to EN 81-21

If YES ...How many switches do you need according to EN 81-21?

Wing surface finish:

Door frame finish:

Surface finish around the window:

Hinged door frame width:

Door frame width:

Header height:

Glass filling color:

Summoner location:

Summoner center height in mm:

Dimensions of the opening for the call box in mm:

Dimensions of the holes for anchoring the summoner in mm:

Axial distance of anchor holes in mm:

Total number of pieces:

Supplementary report:

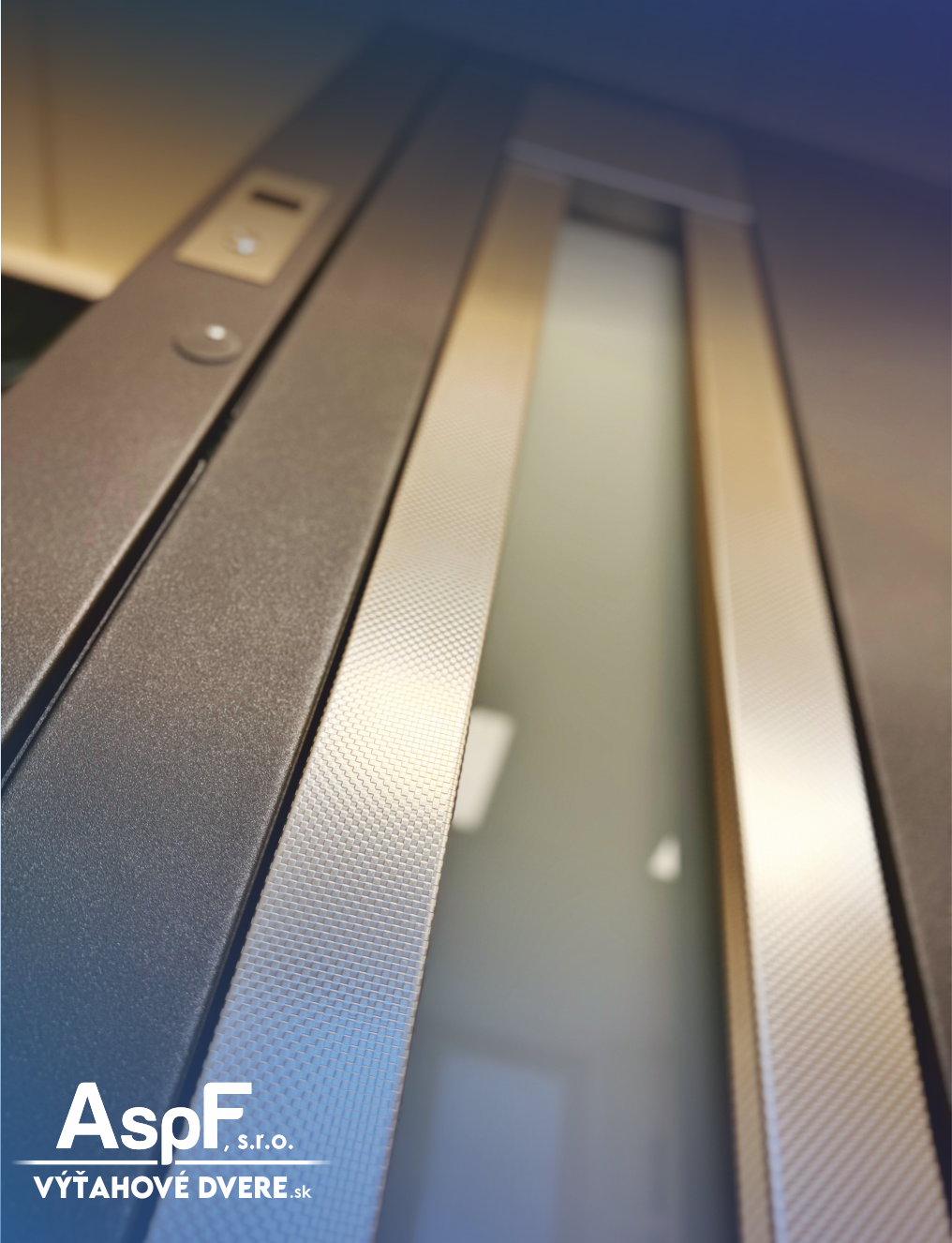

vytahove_sachtove_revizne_dvere_aspf_011

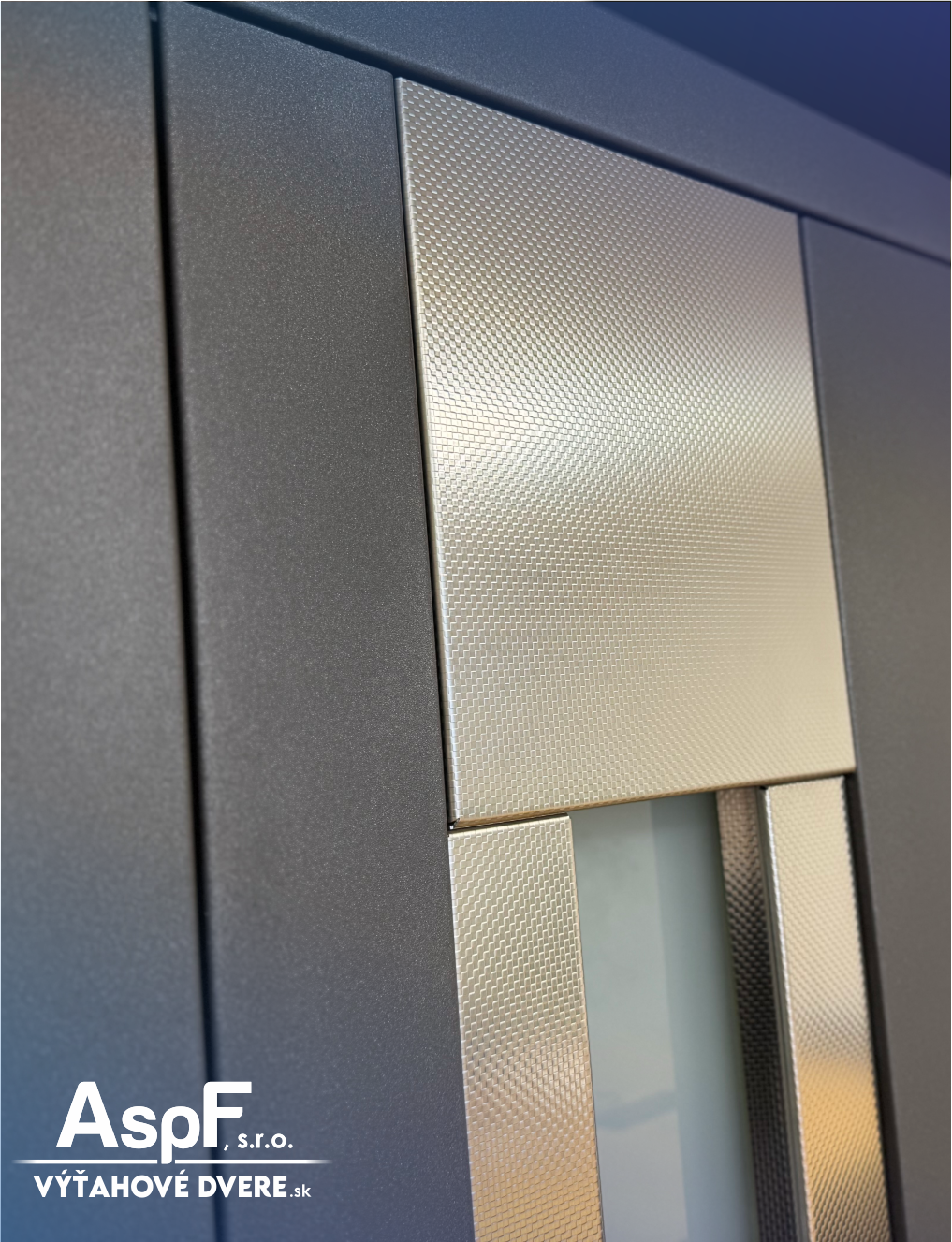

vytahove_sachtove_revizne_dvere_aspf_02

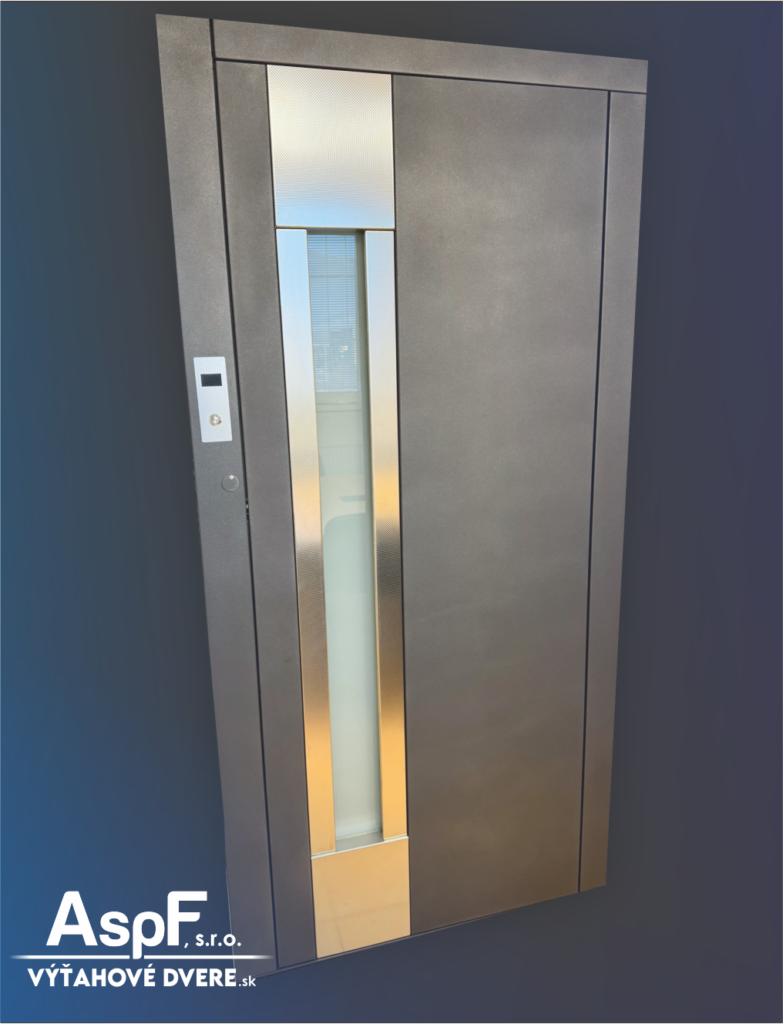

vytahove_sachtove_revizne_dvere_aspf_03

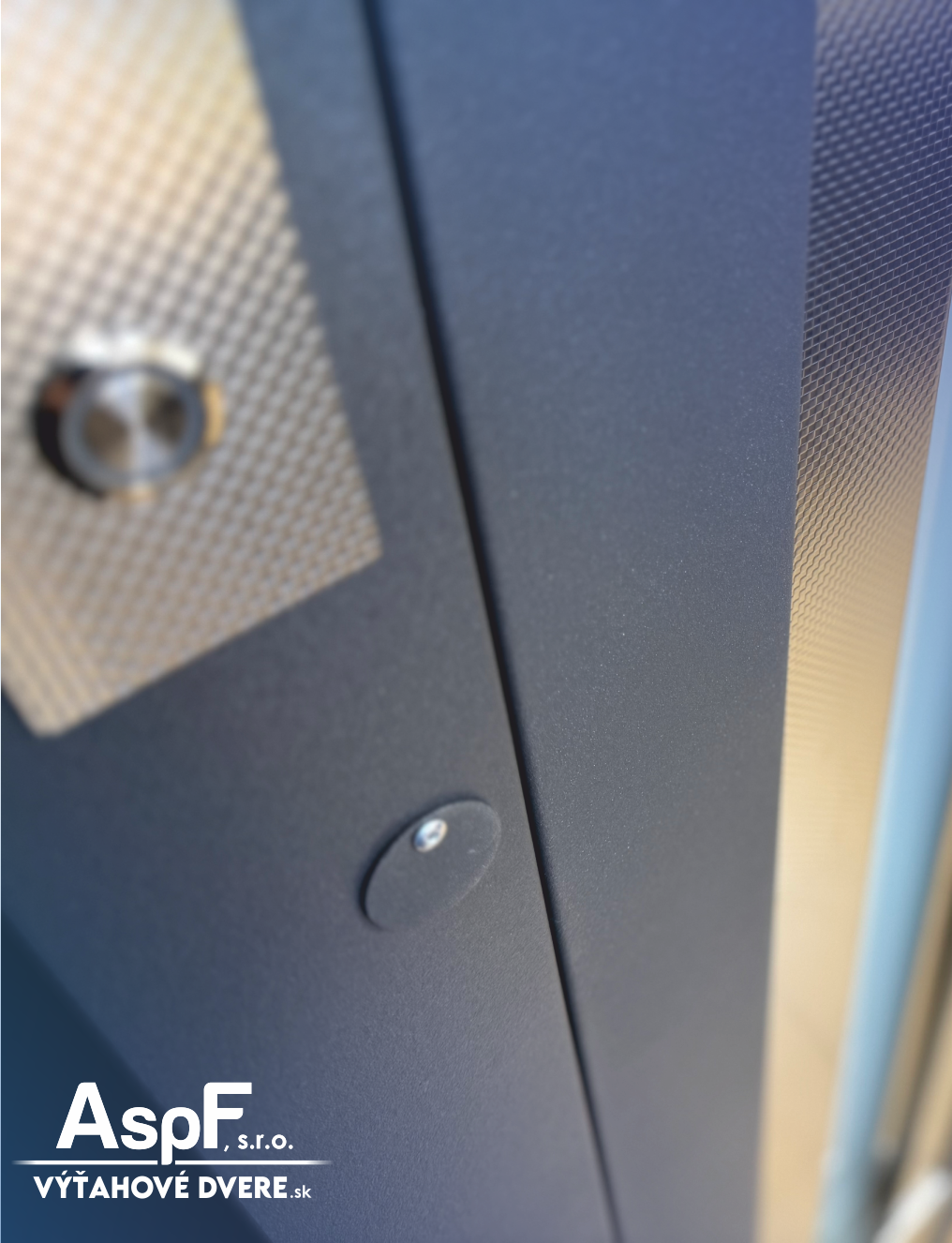

vytahove_sachtove_revizne_dvere_aspf_04

vytahove_sachtove_revizne_dvere_aspf_05
